SUB KITS

Kit #1, rudder

Includes materials to construct rudder spar, rudder bow, ribs, gussets, control horn, wooden dowel rods, hinges, rivets, AN hardware and plans.

The rudder kit is introduces as the first assembly designed to introduce a new builder to the method of construction as well as familiarize him with the plans. Approximate construction time: 6 hours

Cost... See Order Form

Kit #2, Fuselage

This kit consists of materials to construct fuselage ladder truss, gussets, inner sleeves, machine parts, rivets, AN hardware, hinges and plans. Fuselage just be constructed prior to proceeding with the other kits. Approximate construction time: 48 hours.

Cost... See Order Form

Kit #3, Horizontal Stabilizer and Elevator

This kit consists of materials to construct spars, Elevator bow, horizontal frame, ribs, gussets, rivets, wooden dowel rods, hinges, inner sleeves, An hardware and plans. Approximate building time: 9 hours.

Cost... See Order Form

Kit #4, Landing Gear

Consists of materials required to construct gear legs, gussets, axle, main wheels, bearings, machined parts, bracing cables, nico press swedges, tangs, An hardware, tail wheel, bungee cord, and plans. Approximate building time: 14 hours.

Cost... See Order Form

Kit #5, Wing

Consists of materials to construct spars, compression struts, inner sleeves, machined parts, ribs, top bow, hinges, drag/anti-drag cables, nico press swedges, thimbles, tangs, gussets, rivets, An hardware, wooden dowel rods and plans. Approximate construction time: 80 hours.

Cost... See Order Form

Kit #6, Cabanes and lift struts

Consists of materials to construct lift struts, Cabanes, all machined lift forks, ovalized tubing, gussets, An hardware, wooden dowel rods and plans. Approximate construction time: 80 hours.

Cost... See Order Form

Kit #7, Control Systems

Consists of materials to construct torque tube assemble, elevator push/pull tube, rudder pedals, cables, nico press swedges, thimbles, tangs, machined parts, uniflex cables, An hardware, sheet metal, ball bearing rod ends, floor pans and plans. Approximate construction time: 18 hours

Cost... See Order Form

Kit #8, Firewall and formers

Consists of materials to construct firewall, sheet metal for seat, tubing for formers, wooden dowel rods, rivets, front deck, instrument panel, turtle deck former. Approximate construction time: 16 hours.

Cost... See Order Form

Kit #9, covering supplies

Consists of materials required to cover aircraft, ceconite poly tak, poly brush, poly spray, reinforcing tape, rivets, finishing tapes. Approximate building time: 100 hours.

Cost... See Order Form

Kit #10, Fuel Tank

Fuel tank comes welded with supplies to install sight gauge.

Cost... See Order Form

Kit #11, Engine Mounts

Engine mount comes welded and ready for installation.

Cost... See Order Form

Kit #12, Cowling

Kit consists of spun aluminum nose bowl and sheet metal for wrap around.

Cost... See Order Form

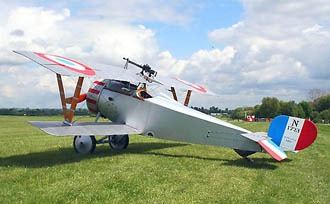

The Airdrome Airplanes full scale NIEUPORT 17 can be constructed using normal hand tools consisting of hacksaw, hand drill, file, pop rivet gun, wrenches, and hand nico press tool. Area required for construction should be approximate the size of a single car garage.
