TORQUE MASTER


Engines by

AIRDROME AEROPLANES

TORQUE MASTER
LONG BLOCK ENGINES

These engines come
fully assembled and
ready for you to install
the accessories

(note: All the images on this page are thumbnails.
Click on the thumbnail for a larger image.
Size 1835cc  1915cc  2180cc
Hp  78 HP  85HP  102 HP
Rpm  4200  4200  4200
Bore  92MM  94 MM  94MM
Stroke  69MM  69MM  82MM
Weight  163 lbs  168 lbs  168 lbs.
Cost  $2242  $2262  $3242
TORQUE MASTER engines "are not" certified aircraft engines.
They can only be used in experimental category aircraft.

Robert Baslee
929 WN RD 1571 HOLDEN MO. 64040
(816) 230-8585

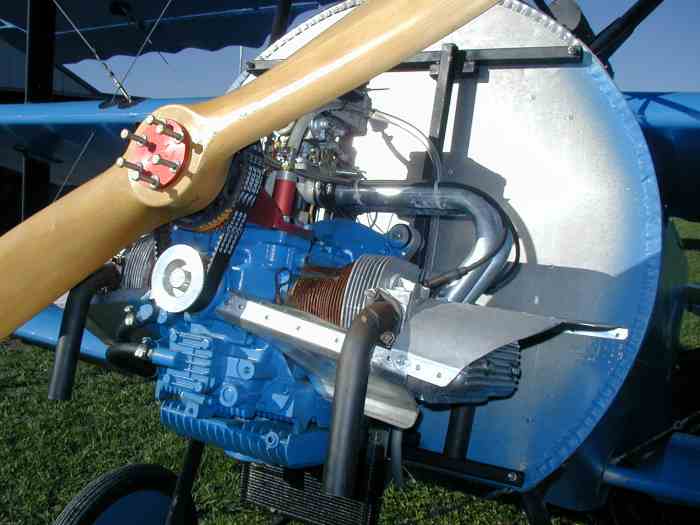

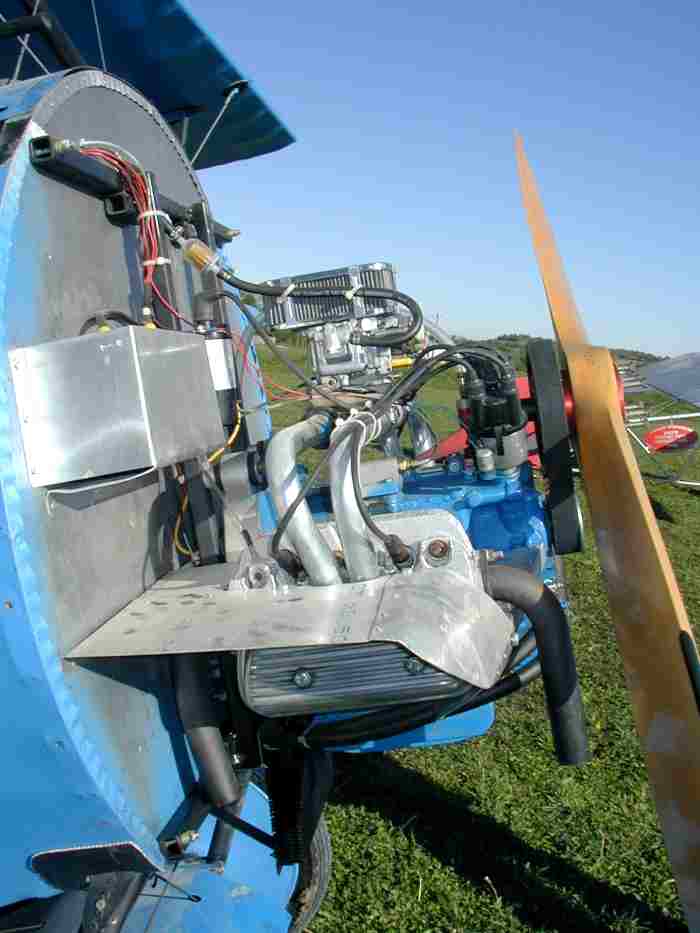

torque-master-3.jpg (33438 bytes)  torque-master-5.jpg (30072 bytes)             torque-master-4.jpg (31325 bytes)

All TORQUE MASTER engines come standard
with the following features.

  • New Cases with the larger oil passages and the dual pressure relief valve system. After installing case savers, the case is machined out for the Cima Mahle pistons and cylinders. Using a CNC Mill, we cut 3 steps inside the cylinder holes to match the cylinders perfectly. The use of 3 precise cuts instead of 1 large cut, leaves more material on the case for increased strength and durability.
  • New Heads TORQUE MASTER'S Big Valve Heads. Increasing the size of the intake valves results in additional horsepower gains not possible from stock heads. So, we machine and install the larger 39 mm intake seats, valve guides, and install the stainless steel alloy intake valves.
  • Forged Crankshaft With the increased horsepower created, you have to be able to transfer it to the prop reliably. The weakest link in the chain is the prop hub mounted to the crankshaft. All TORQUE MASTER Hi-performance engines come ready to accept the TORQUE MASTER REDRIVE which effectively eliminate all prop loads on the crank by distributing them to the case.
  • New Pistons & Cylinders Cima Mahle's the name speaks for itself. When only the finest pistons and cylinders available will do, this is the logical choice. Preferred by more top competitors than any other brand, we agree. Cima Mahle's quality is unsurpassed.
  • New Cam Shaft Our TORQUE MASTER 110 cam is set up for .431 inches lift and 284 degree duration. This cam has a mild idle and is superior for high torque applications, providing excellent low and mid range power.
  • Double Thrust Cam Bearings This is the ultimate in a camshaft bearing. Normal VW cam bearings have the thrust shoulder on only half of the thrust bearing. The double thrust bearings we use, provide an equal 360 degree surface to support the camshaft and reduce wear.
  • Hi Carbon Steel Pushrods insure constant valve control under all conditions. They are heat treated to resist flexing and bending at high rpm's.
  • Heavy Duty Oil Pump These pumps come with the 30 mm gears to increase oil pressure and volume resulting in lower engine operating temperature. The result is increased engine life .
  • Heavy Duty Swivel Adjusters These super strong rocker arm adjusters are designed to spread the impact load on the valve ends and improve control of valve setting tolerances. They will not bind or distort the end of the valve stem.



Click the images below to enlarge.

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge
